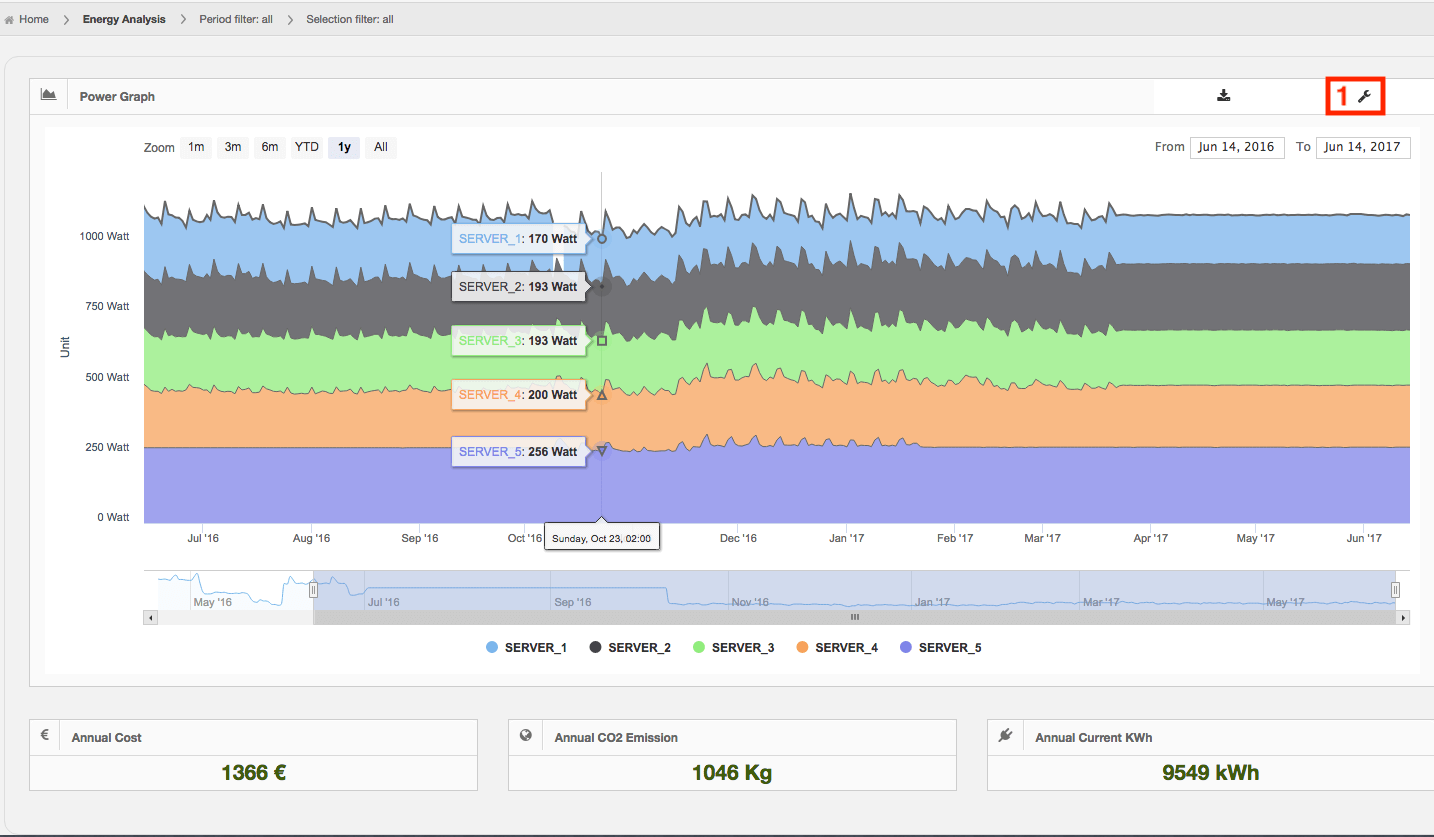

This Energy Analysis module shows the total consumption of the servers in Watts in a timeline. Passing the mouse over the graph, displays the consumption information for each server. Additionally, below the graph, three frames provide the following information:
- Average Cost: average annual cost of the infrastructure.
- Annual CO2 Emission: average annual CO2 emissions of the infrastructure.
- Annual Current KWh: average energy consumption KW/h.

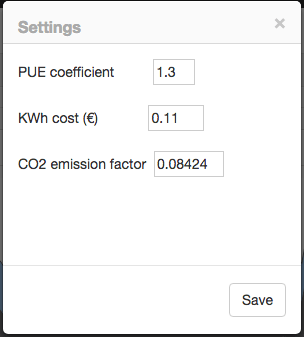

By clicking on the key symbol at the top right of the frame (1), you can set up the Power Usage Effectiveness (PUE), kWh Cost and the CO2 emissions factor.
